311201
VORRÄTIG
Volumen-Preise
| 1 | 110,10 € / M |
| 76 | 105,20 € / M |
| 152 | 100,73 € / M |
| 305 | 96,62 € / M |
| 762 | 92,83 € / M |
Standort Lager
| Arizona | 0 M |
| Chihuahua | 0 M |
| Gelnhausen | 0 M |
| Mexicali | 0 M |
| Queretaro | 0 M |
| Swindon | 0 M |
| Tennessee | 5458 M |
| Texas | 15 M |
Haftungsausschluss
Die Abbildungen dienen als allgemeine Referenz und stellen möglicherweise nicht die tatsächliche Teilenummer dar. Nicht alle Produkte sind für jedes Land oder jeden Kunden verfügbar. Der Lagerbestand wird täglich aktualisiert. Für Lagerbestände gilt: Zwischenverkauf vorbehalten.
| Item Extra Description | 311201 COMPOSITE CABLE |
| Item Description | Discover the exceptional performance of our 50 Ohm Light Weight Coaxial Cable, P/N 311201, engineered for high-frequency signal transmission with minimal loss. This cable features a robust yet flexible design, making it ideal for various applications requ |
| Price Unit | MFT |
| Lead Time (Days) | 80 |
| Manufacturer Part Number | 311201 |
| Capacitance | 25.5 |
| Overall Diameter | 0.317 |
| Velocity of Propigation (VP) | 0.8 |
| Hersteller | Amphenol |
| Gewicht | 0.159 |
| NSN | 6145-01-452-4437 |
| Dielectric | High temperature fluoropolymer |
| Outer Shield | 36 AWG silver-plated copper braid |
| Jacket Type | Clear high temperature fluoropolymer |
| Impedanz | 50 |
| Temp | 150 |
| Außenmantel | 05 - Extruded Clear FEP |
| Schild | G - Single SPC Flat |
| Conductor Count | 3 |
| Innenleiter | Silver Plated Copper |
| Max Temp | 150 |
Introducing the 311201 50 Ohm Coaxial Cable for Avionic Excellence
The 311201 Coaxial Cable marks a significant advancement in avionic connectivity, featuring a 12 AWG stranded silver-plated copper conductor for superior signal fidelity. This cable is expertly designed to meet the rigorous demands of modern avionic systems.
Robust and Durable Construction

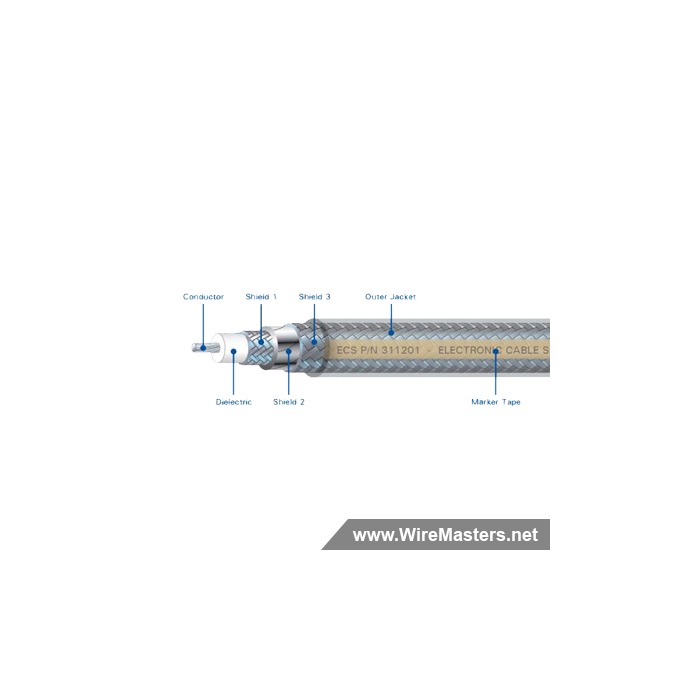

Constructed with a high-temperature fluoropolymer dielectric and enhanced with a triple-layer shield — including a flat silver-plated copper braid, aluminum foil, and a 36 AWG silver-plated copper braid — the 311201 is encased in a clear fluoropolymer jacket. This design offers unmatched protection against extreme temperatures and chemical agents such as Skydrol.
Adherence to Safety Standards
Meeting or exceeding critical burn requirements as specified in Federal Aviation Regulations, the 311201 ensures safety by avoiding the release of hazardous substances under fire or high-temperature conditions. Such compliance underscores our commitment to safety in avionic applications.
Extensive Connector Compatibility
With a wide array of connector options, including TNC and C types, the 311201 ensures seamless integration into diverse avionic systems, making it a versatile solution for a range of connectivity challenges.
Superior Physical and Electrical Specifications
The cable boasts an optimal outer diameter of 0.317 in. and a flexible bend radius of 1.59 in., complemented by outstanding electrical properties like a 50 Ohm impedance and over 90 dB shield effectiveness. These features guarantee exceptional performance across various frequencies and operational conditions.
Opt for the 311201 Coaxial Cable for your avionic requirements and leverage the ultimate in connectivity and reliability. Crafted for high performance, engineered for stringent safety standards, and prepared to lead aviation technology into the future.
