RCN9034-24
VORRÄTIG
Volumen-Preise
| 1 | 108,77 € / M |
| 76 | 103,93 € / M |
| 152 | 99,51 € / M |
| 305 | 95,45 € / M |
| 762 | 91,71 € / M |
Standort Lager
| Arizona | 402 M |
| Gelnhausen | 0 M |
| Mexicali | 0 M |
| Queretaro | 0 M |
| Swindon | 0 M |
| Tennessee | 0 M |
| Texas | 0 M |
Haftungsausschluss
Die Abbildungen dienen als allgemeine Referenz und stellen möglicherweise nicht die tatsächliche Teilenummer dar. Nicht alle Produkte sind für jedes Land oder jeden Kunden verfügbar. Der Lagerbestand wird täglich aktualisiert. Für Lagerbestände gilt: Zwischenverkauf vorbehalten.
| Price Unit | MFT |
| Item Extra Description | RCN9034-24 | Cat6a GORE® Aerospace Ethernet Cables |
| Item Description | Explore the RCN9034-24 Ethernet Cable by W. L. Gore & Associates, Inc., designed for aerospace and military use, offering Cat 6A compliance and a 100 Ohm rating for up to 80 meters. |
| Hersteller | W. L. Gore & Associates |
| Manufacturer Part Number | RCN9034-24 |
| Stärke | 24 |
| Max Temp | 200 |
| Cap. pF/Ft | 12.5 |
| Weight lbs/1000 ft | 42 |
| Impedanz | 100 |
| Hersteller | WL Gore |
| Conductor Count | 4 Pair |
| Temp | 200 |
| Min Operating Temperature | -65 |
| Overall Diameter | 6.6 |
| Isolierung | Engineered Fluoropolymer |
| Schild | Aluminized Polymide |
| Inner Conductor Material | Silver-Plated Copper Alloy |
| Farbe | White (Laser Markable) |
| Specification | SAE AS6070 |
| Kabeltyp/Protokoll | Ethernet Cat6a |
Introducing the RCN9034-24 High-Speed Ethernet Cable by W. L. Gore & Associates, Inc.
Elevate your data communication systems with the cutting-edge RCN9034-24 Ethernet Cable, a hallmark of innovation and quality from W. L. Gore & Associates, Inc. This cable is designed for high performance and reliability in aerospace, military, and industrial environments.

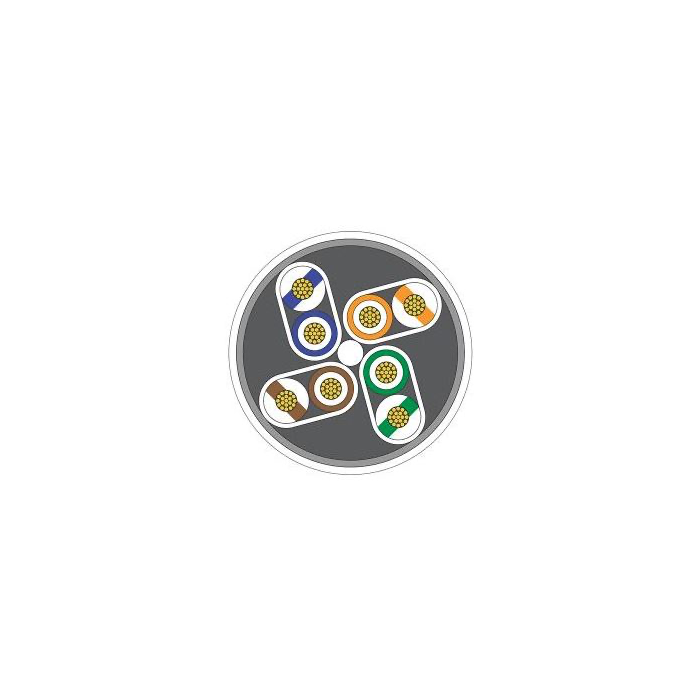

Superior Construction
- Shielded Twisted Pair Configuration: Four pairs of AWG 24(19 / 36) Silver-Plated Copper (SPC) conductors for optimal signal integrity.
- Advanced Insulation: Utilizes ePTFE / PTFE materials for durability, with a diameter of 0.060 inches.
- Color Coding: Features color-coded pairs for easy installation.
- Robust Shielding: Aluminized polyimide and AWG 40(1) SPC braid provides 92% minimum coverage against interference.
- Durable Jacketing: Encased in a white, laser-markable EF100 jacket for environmental protection.
Electrical Requirements
- Impedance: 100 Ω, supporting high data integrity.
- Time Delay: 1.24 nSEC/FT for rapid signal transmission.
- Capacitance: 12.5 pF/FT, optimized for high-speed data.
- Maximum Attenuation: Excellent signal quality over distances up to 80 meters.
- NEXT (Maximum): Exceeds performance expectations with values up to 74.3 dB.
Additional Highlights
- Temperature Range: Operates between -65° C to +200° C.
- Weight: A nominal weight of 42 lbs/1000 ft for ease of handling.
- Compliance: Meets TIA568C.2 Category 6A requirements for up to 80 meters.
The RCN9034-24 Ethernet Cable stands as a testament to Gore's commitment to advancing connectivity technologies, ideal for high-demand applications where data integrity and speed are paramount.
